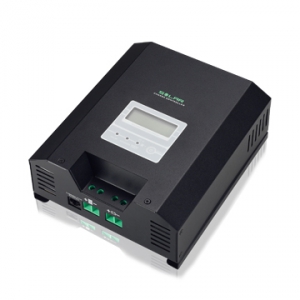

KSCC-MPPT 3KW ¼Ö¶ó ÃæÀü±â
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³

¡á
ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á
¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á
Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
Main Features
  • Intelligent Maximum Power Point Tracking technology
  • Built-in DSP controller with high performance
  • Three-stage charging optimizes battery performance
  • Multifunction LCD displays detailed information
  • Reverse polarity protection of solar panel and battery
  • Overcharge protection
  • IP 21 protection
  • Suitable for battery types of sealed lead acid, vented, Gel, and NiCd
  • Standard RJ45 port for remote monitoring


SCC-MPPT 3K
INPUT
MPPT Range 60 VDC ~ 132 VDC
Maximum PV Array Open Circuit Voltage 150VDC
Maximum PV Array Power 3000W
OUTPUT
Nominal Battery Voltage 48 V
Connected Battery Type Sealed lead acid, vented, Gel, NiCd battery
Maximum Charging Current 60 A
Maximum Efficiency 98.0 %
Standby Power Consumption 2W
Charging Method Three stages: bulk, absorption, and floating
PROTECTION
Overcharge Protection Yes
Polarity Reversal Protection @ Solar Cell & Battery Yes
INDICATORS
LCD Display LCD panel indicating solar power, output power, battery voltage, charging current, and fault conditions
LED Display Three indicators for solar, battery, and wiring fault
PHYSICAL
Dimension, D x W x H (mm) 180 x 210 x 80
Net Weight (kgs) 1.28
Connector Input / Output terminal block
Type of Mechanical Protection IP 21
ENVIRONMENT
Humidity 0 ~ 90% RH (No condensing)
Altitude -20¡ÆC to 55¡ÆC
Operating Temperature -40¡ÆC to 75¡ÆC
Storage Temperature 0 ~ 3000 m
