솔라모듈 시험장비

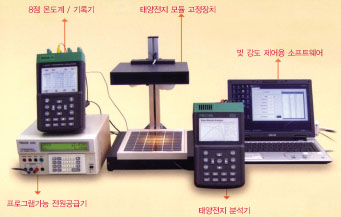

구성: 8ch 온도 기록계, PROVA 200 솔라모듈 시험기 (60V, 6A), 노광장치 및 프로그램 콘트롤러, 소프트웨어
http://www.korins.kr/maker/tes/tes_SS1.pdf
제품구성 :
- Sloar Cell/Panel Fixture with Halogen LAmp
and Thermocouple and Pyranometer
- Light Intensity Control Software(PC not included)
- PROVA-200 : Solar Module Analyzer
- PROVA-800 : 8 Input Thermometer / Datalogger
- PROVA-8300 : Programmable Power Supply |
 |
|
 |
I-V Curve Test for Solar Cell. |
|
Single Point I-V Test. |
|
Maximum Solar Power (Pmax) search by auto-scan (60V, 6A). |
|
Maximum Voltage (Vmaxp) at Pmax. |
|
Maximum Current (Imaxp) at Pmax. |
|
Voltage at open circuit (Vopen). |
|
Current at short circuit (Ishort). |
|
I-V curve with cursor. |
|
Efficiency (%) calculation of solar panel. |
|
Scan delay (parameter) setting. (0 ~ 9999 mS) |
|
Solar panel dimension (parameter) setting.(0.001 ~ 9999 Cm²) |
|
Standard light source (parameter) setting.(250、500、750、1000 W/m²) |
|
Min. power (parameter) setting and alarm. (1 mW ~ 100 W) |
|
Real time data logging. |
|
Rechargeable batteries; LCD displays low battery. |
|
RS232C (to USB Bridge) cable for PC. |
|
Option: portable thermal printer (model: 300XP) to print (hardcopy) the LCD displays of Solar Module Analyzer. | | | | | |
| |
 |
|
PROVA 200 Solar Module Analyzer
|
 |
|
- I-V Curve Test for Solar Cell.
- Maximum Solar Power (Pmax) Search by Auto-scan (60V, 6A)
- Maximum Voltage (Vmaxp) at Pmax
- Maximum Current (Imaxp) at Pmax
- Voltage at open circuit (Vopen)
- Current at short circuit (Ishort)
- I-V curve with cursor
- Optional printer (model: 300XP) to hardcopy I-V curve
- Calculation of Efficiency (%)
- Manual single point test
|
 |
|
Electrical Specifications (23℃±5℃)
DC Voltage:
| Range |
Resolution |
Accuracy |
|
0–10V |
0.001V |
±1% ± 18 dgts |
|
10–60V |
0.01V |
±1% ± 18 dgts | |
DC Current:
| Range |
Resolution |
Accuracy |
|
0–1A |
0.1mA |
±1% ± 18 dgts |
|
1–6A |
1mA |
±1% ± 18 dgts | |
General Specifications:
|
Battery Type: |
1.2V AA rechargeable battery x 8(2700mAh) |
|
AC Adaptor: |
AC 110V or 220V input,
DC 12V/3A output |
|
Dimension: |
257 (L) x 155 (W) x 57 (H) mm
10.1 (L) x 6.1 (W) x 2.2 (H) in |
|
Weight: |
1160 g / 40.9 oz
(battery included) |
|
Accessories: |
Users manual x 1
1.2V AA rechargeable battery x 8
1 set of Kelvin clips (2 clips, 5A max.) | |
| | |
|
PROVA-300XP Portable Thermal Printer
|
|
 |
- Portable Field Printing for Certificate
- Text and Graphics
- Two Selectable Fonts (5*7 and 8*16)
- Programmable text Header and Footer
- Battery and AC Power Adaptor
- RS-232C Interface (Optional RS-232C to USB Bridge)
- Fixed Interval Continuous Printing(5, 30, 60, 300 seconds)
|
|
|
| Printing Mechanical Specification |
|
Method |
Thermal Dot Printing |
|
Dot Per Line |
8 (vertical) * 166 ( horizontal ) |
|
Fonts |
5*7 and 10*15 |
|
Dot Pitch |
0.35 mm ( vertical ) , 0.28mm ( horizontal ) |
|
Character Size |
1.4 * 2.4 mm ( 5 * 7 ), 2.8 * 4.6 mm ( 10 * 15 ) |
|
Characters Per Line |
27 (5 * 7 ), 16 ( 10 * 15 ) |
|
Printing Contrast |
Auto and User Selectable |
|
Printing Width |
46mm |
|
Printing Speed |
0.8 lines / second |
|
Printing Life |
500.000 lines |
|
Paper Width |
57 mm | |
| Interface |
RS-232C (9600,8,1,N) |
| Receiving Buffer |
9K bytes |
| Character set |
ASCII International |
| Graphics |
Bit Map |
| Option |
USB to RS -232C Bridge | |
|
Mechanical and Environmental Specification |
| Operating Temperature |
-10℃ ~ 50℃ |
| Storage Temperature |
-20 ℃ ~ 60℃ |
| Humidity |
0 ~ 90% RH (Non-condensing) |
| Batteries |
8*1.5V |
| AC Power Adaptor |
DC 12V |
| Dimension |
95mm(W)*135mm(D)*55mm(H) |
| Weight |
440g ( 8 batteries included) | |
| | |
|
|
 | |
 |
|
 |
|
